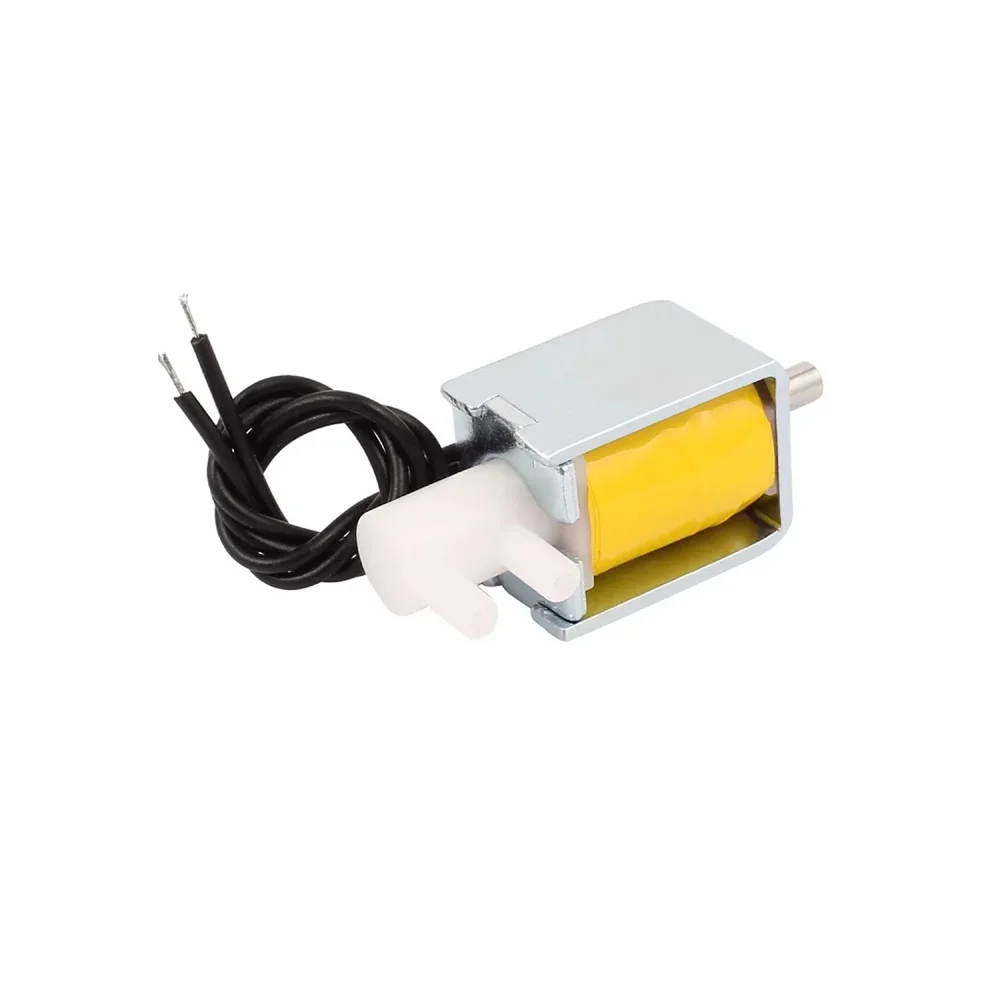

2-POSITION 3-WAY SOLENOID VALVE

• Rated voltage: DC12.0V
• Rated current: <45mA
• Deflation speed: <3S
• (in 500cc pressure vessel discouraged from 300mmHg to 15mmHg time required)
• Pressure range: 0-350mmhg
• Insulation resistance: 50Ω
• Insulation Class: A
• Sealing: In the 500CC vessel inflation pressurefrom 0 After to 300 mmHg to stop
• inflation, measured for 30 seconds after the stability of the pressure reduction value
• of less than 5mmHg / min.
• Fluid: AIR air
• Life: 500CC container, inflatable exhaust 5 seconds to
• 10 seconds a lap test more than 50,000 times
• Operating temperature range: 0 ℃ ~ 55 ℃
• Noise: 5cm sponge pad under the pump, the noise meter distance between 30cm (<60dB).
• Power: <1w
• Model – FA0520F

Features
– Small size, easy to carry
– Wide range of applications, such as: medical equipment, household appliances,
infrastructure, health care equipment, facilities, etc.
– Insulation levels
-long lasting
